Top of the line, for A2 books and bound documents

Superior Ergonomics
Perfected Light Design
Powerful Software Suite
Adjustable “V” Cradle
Sony and Canon Support
FADGI Compliant

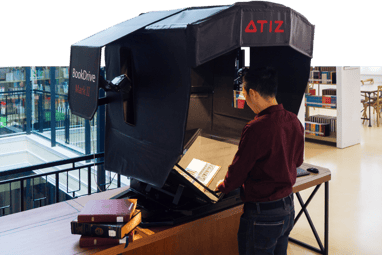

BookDriveMark 2

Upgrade to Mark 2

The Industry Standard

Mark 2, a successor to the BookDrive Pro, our best-selling scanner. Mark 2 has improved upon BookDrive Pro in so important ways based on actual feedback of the prousers that make you want to upgrade.

BookDrive created an industry standard of how libraries around the world digitize their books today.A dual-camera “V” cradle imaging system captures images of books and print materials, without risk of damage to the items being scanned. This scanning method from Atiz has become so successful it is used everywhere and widely embraced even by competitors.

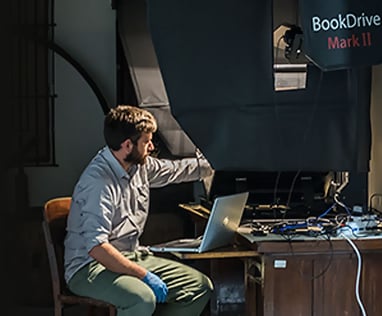

Some of the reasonswhy customerschose the Atiz.

We chose the Atiz for the following reasons:
Simplicity of its design
There are fewer things that can go wrong. There are no motors, and fewer moving parts.
Cost
This product was considerably cheaper than the other units we were considering.
Modularity
If we want to upgrade to more powerful lenses or cameras in the future, we can just buy them and install them ourselves without having to purchase a whole new machine. Therefore the Atiz Mark II is safer from obsolescence.
Speed
The Mark II can capture 2 high-resolution images in a couple of seconds including the time it takes to turn the page. Overhead planetary scanners take many times longer, depending on the resolution.
Size
The Atiz Mark II takes up less space than the other units we were considering.

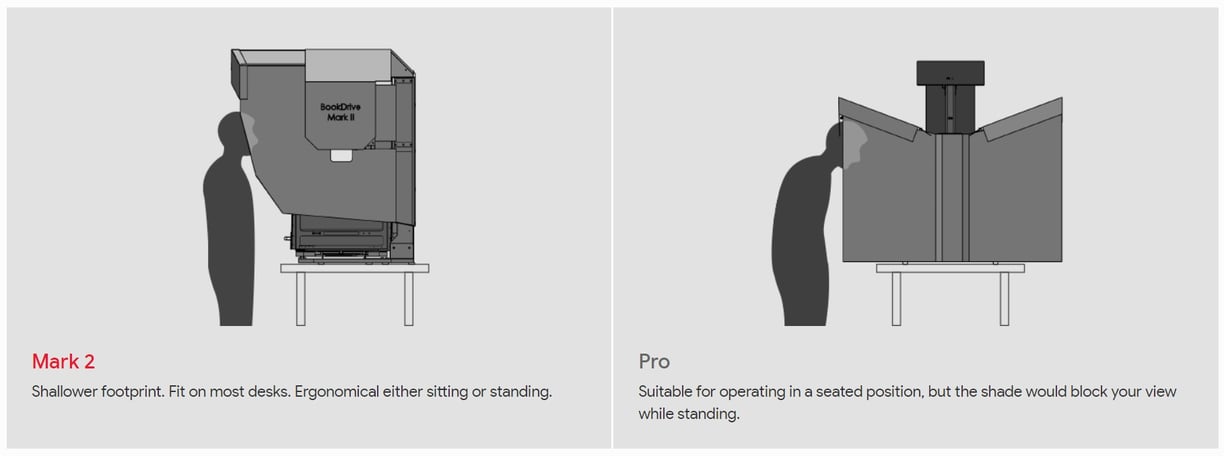

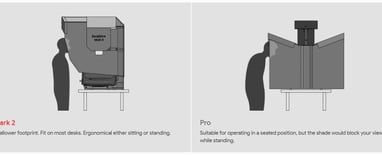

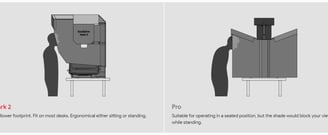

Superior Ergonomics,

Comfort and Safety

Ergonomics, operator comfort and safety is most important and it has received a major upgrade. Mark 2 is easier on your back, arms, eyes and ears.

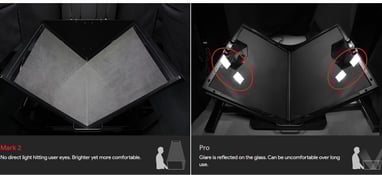

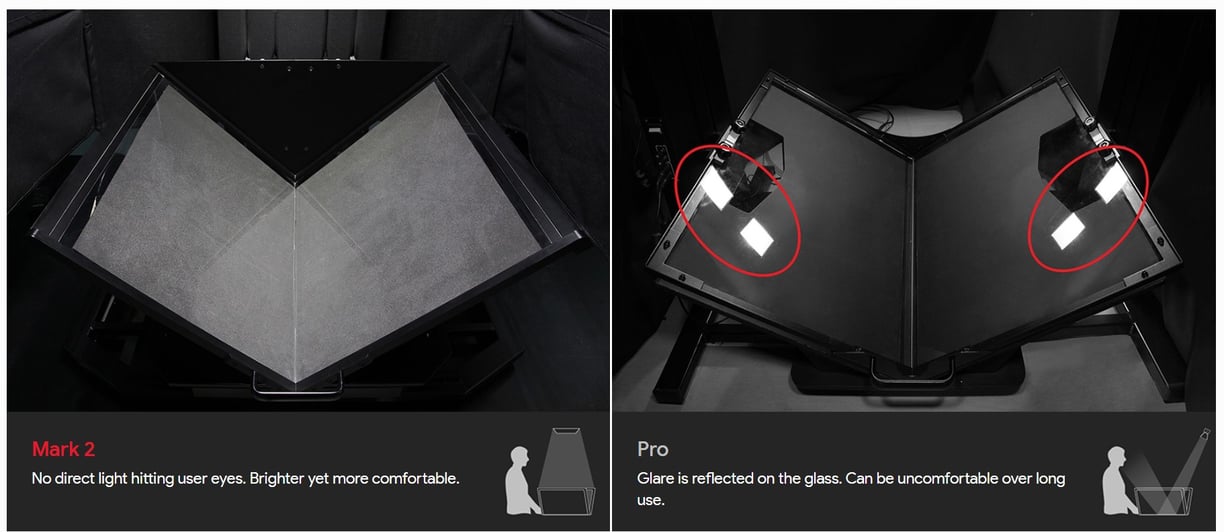

No direct light facing toward users

The new custom light produces much better images, but more importantly, the light will not shine directly or bounce off the glass into the operator's eyes.

Cool and silent operation

The new fan-less LED ensures the operation stay cool and silent the whole time creating a pleasant work environment. Suitable for library and office environment.

Lighting dims when turned off

Like a light in a luxury car cabin, it gently dims off when you turn it off so it's less abrupt to your eyes.

The "V" System Gets a Major Upgrade

Better, scratch-resistant V platen

The V platen is made using a premium scratch-resistant material that is more transparent and durable than glass allowing for better scanned images. It is manufactured using a different production technique so that it allows you to scan deeper into the gutter.

Flexible cradle for thick-spine books

The new V cradle is better and more flexible. The cradle is adjustable, the angle altered and opened apart. This makes for optimal page contact for all kinds of book bindings and spine thicknesses. The self-centering cradle slides sideways during scanning keeping the books centered.

V platen so light

New V platen mechanics allow for the operator better control of the platen to mitigate risk of operator injury or damage to items being digitized. It is fingertip light to lift or lower. The platen hovers in the air and stays exactly where you position it.

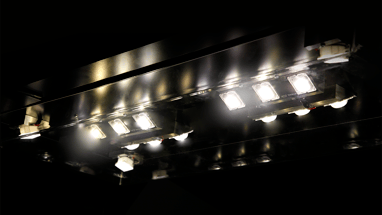

Perfected Light Design for Greater Image Quality

Better image quality backed up by stats

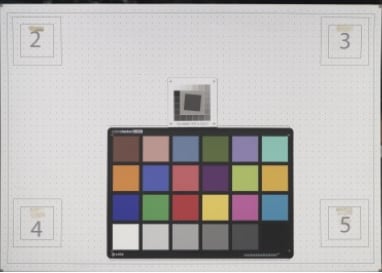

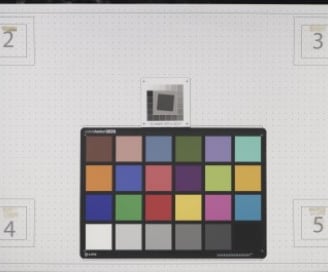

Even light distribution with no bright or dark spot visible anywhere in the frame.

Quality, not quantity

Camera: Sony

A7RIVLen : Sony FE 50mm F1.8

High Color Accuracy

Camera : Sony

A7RIVLens : Zeiss Sonnar T*FE 50mm F1.8 ZA

High Resolution

Camera : Sony

A7RIVLens : Sigma 50mm F1.4 DG HSM ART

Camera : Canon

EOS 5DSRLens : Sigma 50mm F1.4 DG HSM ART

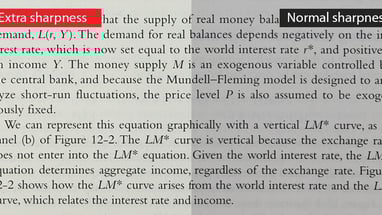

Brighter light equivalent to 2 stop speed shutter (compared with BookDrive Pro) and extra sharpness is achieved.
Comparison of scanned images on BookDrive Mark 2 vs. BookDrive Prousing the same camera settings (non-enhanced images).
Comparison of scanned images on BookDrive Mark 2 vs. BookDrive Prousing the same camera settings (non-enhanced images).

Sony and Canon Support

Designed from the ground up to support Canon DSLR cameras, both zoom lenses, and prime lenses. Conveniently slide your camera to the suggested position and begin shooting, your camera will be at the right distance and height perfectly matching the size of the item you intend to scan.

full-frame and crop factor cameras

Powerful Software Suite

Software determines the true productivity of a system and software from Atiz is the best.

Atiz Capture for Sony

BookDrive Capture

The software that controls the cameras and makes on-the-fly editing to the images during scan.
Support Sony mirrorless, Canon mirrorless and DSIR cameras
Operator can see Live View and view captured images on a monitor in the correct orientation without additional adjustment
Fast shooting up to 800 pages/hour
In-software camera settings allow you to configure settings such as shutter speed, aperture, and other properties of the camera
Metadata XML support
Various convenient ways to capture: by timed lapse or by using Auto Capture Switch
RAW support and a workflow that allows you to convert from RAW files to lossless formats such as TIFF
Easily insert missing pages, replace or delete unwanted ones. All the affected files will be corrected automatically

BookDrive Editor Pro 10

The application for advanced post-scan image processing to create output of the highest quality ready for distribution.
Robust enhancement tools and intuitive use interface deliver professional results with minimal fuss
Fast Batch processing for unattended, hassle-free operation
Multi-book, multi-chapter operation
Book Profiling for quickly applying the same settings to similar kind of books

Adaptive Local Thresholding for highest quality B&W conversion
Verifiable image resolution
Support the sRGB color space
Capable of providing uncompressed 24-bit color TIFF files that conform to ISO 12234-2.2
And a lot more (including rotation, deskew, drop, auto level, brightness and contrast adjustment, etc.)
Available output formats include PDF (single or multi-page file), TIFF (LZW and CCITT Group 4, Single or multi-page file) and JPEG

Compatible Cameras and Lenses

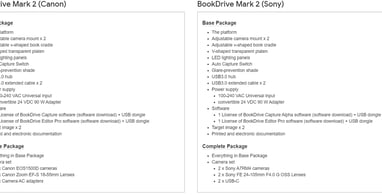

What's Included

Canon

Sony
