Flat-plane A2

BookDrive N

Flat-Plane Cradle

Ergonomic DesignLarger than A2 size

Smart, Adjustable Cradle

Vertical Moving GlassAdvanced lighting system

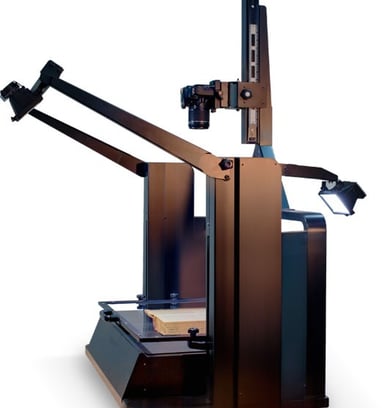

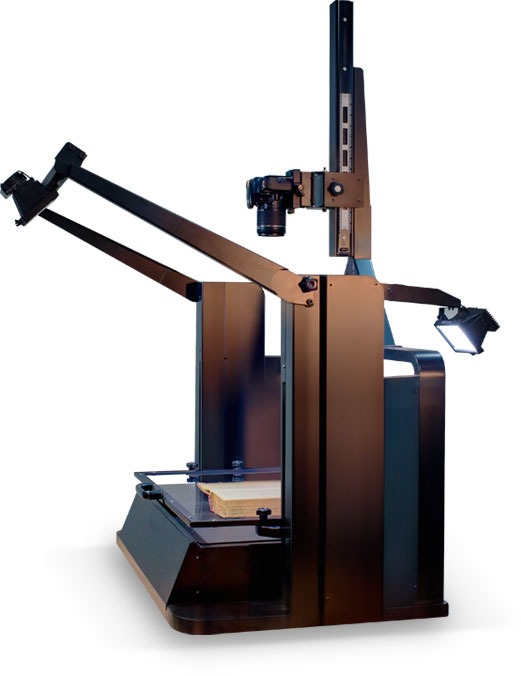

Introducing BookDrive N from Atiz.

More than books, the versatile BookDrive N is great for scanning bound and unbound materials such as artwork, maps, photos, journals, newspapers or pretty much anything.

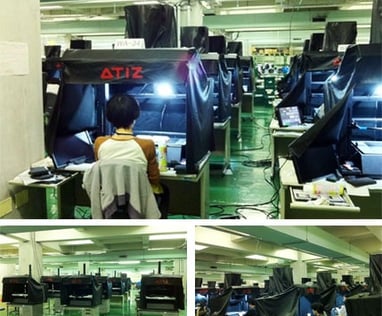

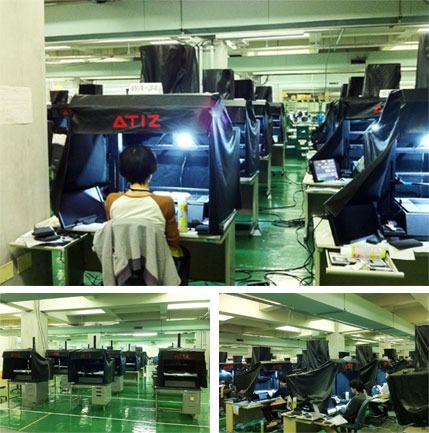

The Story of BookDrive N

The BookDrive N was originally developed for a massively large scale project in Japan where its national library (National Diet Library) undertook to digitize the nation’s collections of invaluable items such as journals and other materials with great cultural value.The project went very successfully. At first, we were hesitant to release this model to market because Atiz had always been known as maker of V-shaped scanners and we did not want to change that. With so many requests and demands from the customers, we finally made BookDrive N available for customers who want to scan such materials at highest quality and will benefit from having a versatile scanner like BookDrive N.

The Smart Adjustable Cradle

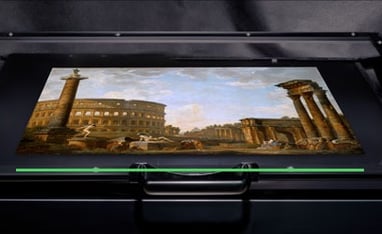

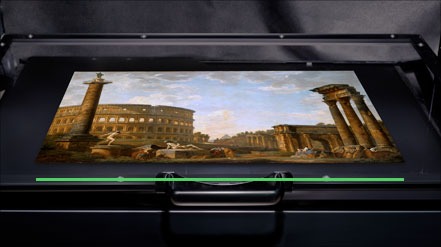

Flat-Plane Cradle

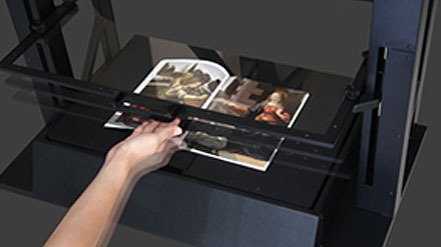

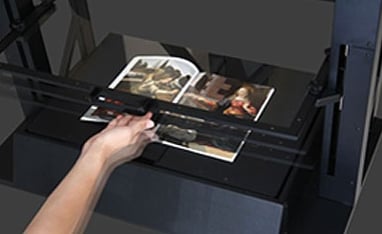

The BookDrive N’s cradle is very versatile. For sheet materials, the cradle acts as regular flat plane so that you can capture sheet materials like artwork or even objects easily.

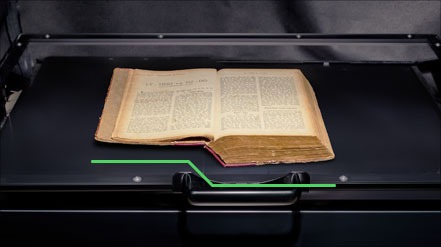

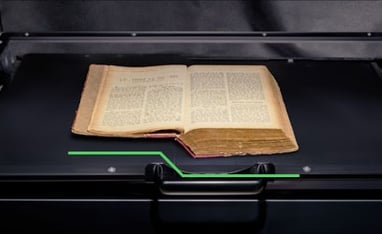

Smart, Adjustable Cradle

For thick bound materials such as old fragile books, the cradle’s smart mechanism suddenly adjusts itself automatically so that both the left and right top pages being open will appear level on the surface suitable for scanning without curvature.

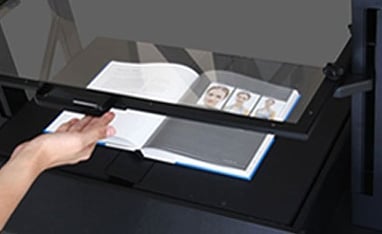

Ergonomic Design

Great ergonomics is priority. The glass platen is fingertip light. The BookDrive N is very comfortable to operate over long period of time.

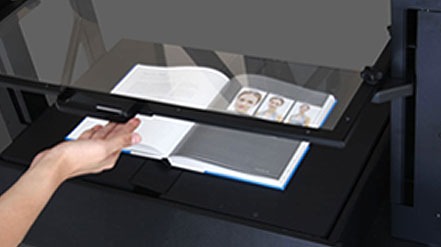

Vertical Moving Glass

The glass can be freely moved vertically to accommodate even unusually thick books as well as to provide gentle flattening effect on the pages being scanned. What you get is a natively curvature-free image without needing further software correction.

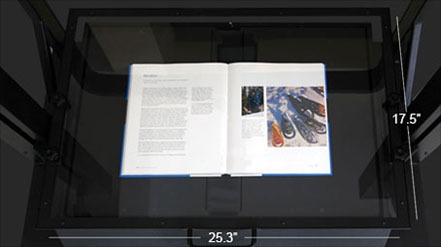

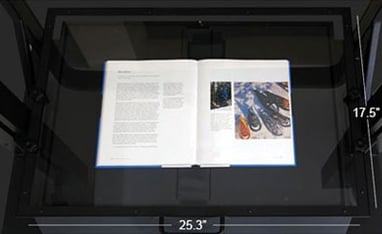

Larger than A2 size

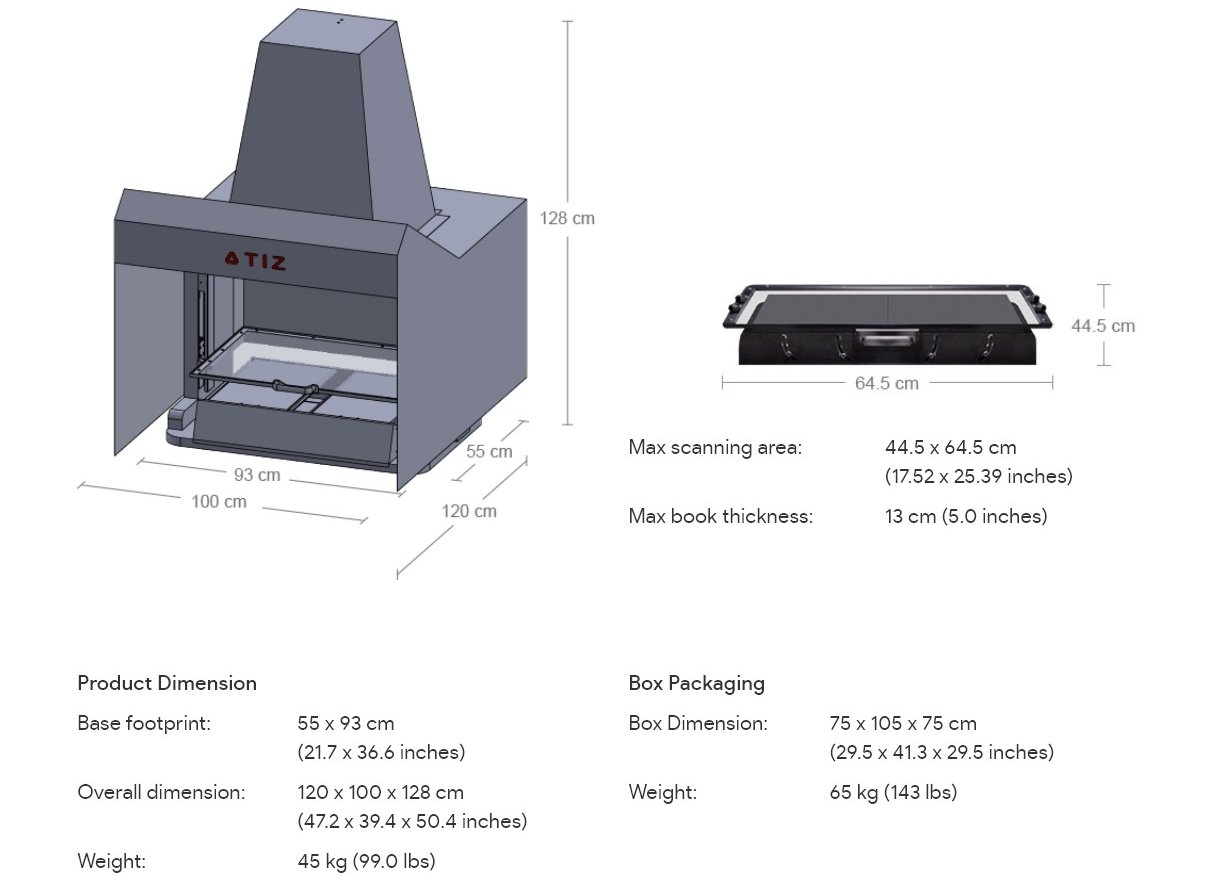

Max page size support for BookDrive N is 17.5 x 25.3 inches (or 44.5 x 64.5 cm) which is slightly larger than A2 size (16.53 x 23.39 inches or 42 x 59.4 cm).

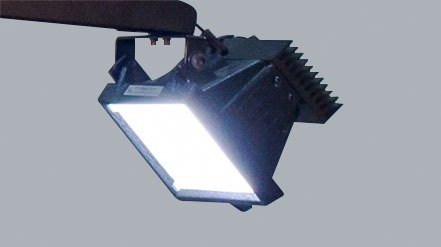

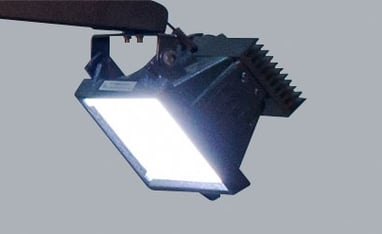

Advanced lighting system

The proprietary cold LED lighting on both the front and rear of machine ensures your images have even brightness across the surface with no glare even on glossy materials.

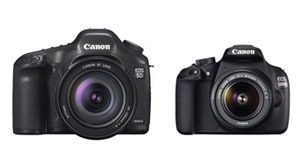

Supports Canon and other DSLR cameras

For Maximum Resolution

Canon's full frame and crop factor cameras

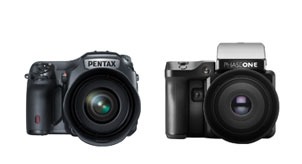

High-end cameras from other brands such as medium format cameras from Pentax are also supported and can be mounted on BookDrive N (requires additional software or remote controller)

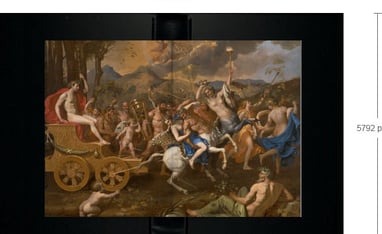

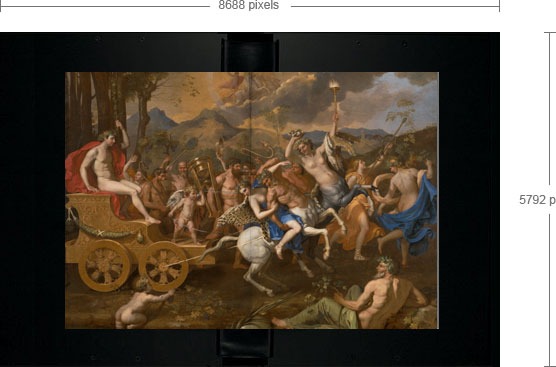

For Maximum Resolution

Scanned with a 50.6 MP sensor (Canon 5DS)

With this approach, scanning with an ultra-high resolution camera is instantaneous regardless of the page size. Your size can always easily upgrade to newer, better, and cheaper cameras.

Powerful Software Suite

Software determines the true productivity of a system and software from Atiz is the best.

Atiz Capture for Sony

BookDrive Capture N

The software that controls the cameras and makes on-the-fly editing to the images during scan.

Support Sony mirrorless, Canon mirrorless and DSIR cameras

Operator can see Live View and view captured images on a monitor in the correct orientation without additional adjustment

Fast shooting up to 800 pages/hour

In-software camera settings allow you to configure settings such as shutter speed, aperture, and other properties of the camera

Metadata XML support

Various convenient ways to capture: by timed lapse or by using Auto Capture Switch

RAW support and a workflow that allows you to convert from RAW files to lossless formats such as TIFF

Easily insert missing pages, replace or delete unwanted ones. All the affected files will be corrected automatically

BookDrive Editor Pro 10

The application for advanced post-scan image processing to create output of the highest quality ready for distribution.

Robust enhancement tools and intuitive use interface deliver professional results with minimal fuss

Fast Batch processing for unattended, hassle-free operation

Multi-book, multi-chapter operation

Book Profiling for quickly applying the same settings to similar kind of books

Adaptive Local Thresholding for highest quality B&W conversion

Verifiable image resolution

Support the sRGB color space

Capable of providing uncompressed 24-bit color TIFF files that conform to ISO 12234-2.2

And a lot more (including rotation, deskew, drop, auto level, brightness and contrast adjustment, etc.)

Available output formats include PDF (single or multi-page file), TIFF (LZW and CCITT Group 4, Single or multi-page file) and JPEG

Compatible Cameras and Lenses

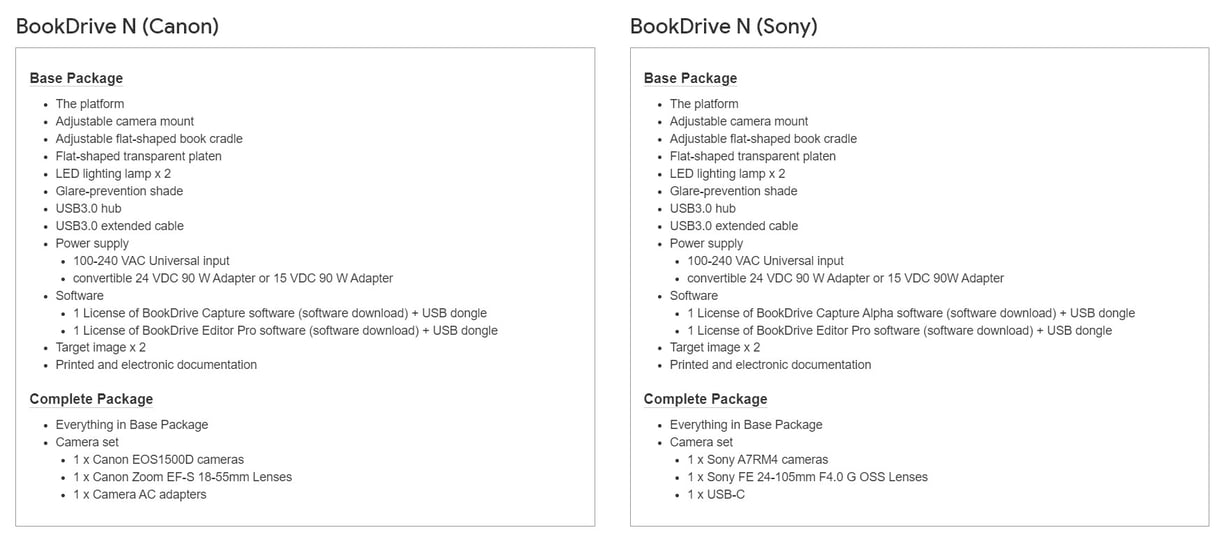

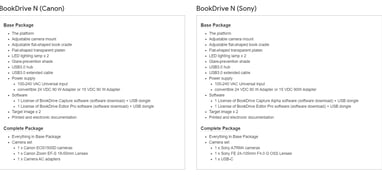

What's Included

Canon

Sony
